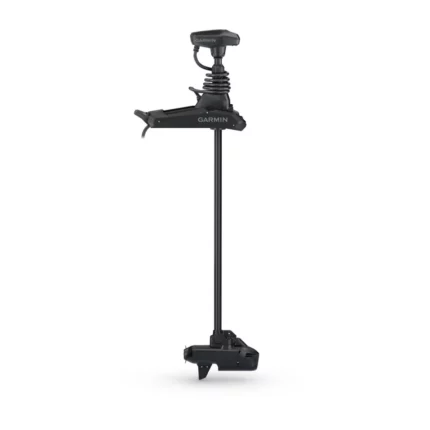

Garmin Force® Kraken Trolling Motor 63″ Trolling Motor with GT56UHD-TR Transducer – Black
Original price was: R98, 999,00.R87, 930,00Current price is: R87, 930,00.
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
THERE’S A NEW LEGEND TO BEHOLD
The Force Kraken trolling motor is engineered with a longer shaft for boats with high freeboards and a pivot-style mount for easy installation in vessels where bow space is limited.
 |
 |
 |
 |
 |
 |
| LEGENDARY POWER AND PERFORMANCE; 100 LBS OF THRUST¹ | WIRELESS INTEGRATION WITH GARMIN CHARTPLOTTERS | STAY ON THE FISH WITH ANCHOR LOCK AND MULTI-BAND GPS | PIVOT-STYLE MOUNT FOR EASY INSTALLATION | AVAILABLE IN 48-INCH, 63-INCH AND 75-INCH SHAFT LENGTHS | SEAMLESS CABLE INTEGRATION WITH LIVESCOPE™ SONAR |
WHAT YOU’LL LOVE |
HIGH POWEREDForce Kraken provides legendary power and performance with 100 lbs of thrust1 |
POWER THAT LASTSEfficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing — and not running out of battery. |
WHISPER QUIETDon’t spook the fish; the motor is extremely quiet above and below the water. |
 |
 |
 |
PURPOSE-BUILT DESIGNThis trolling motor is optimised to operate in rough open-water conditions, at either 24 or 36 volts, thanks to the powerful and efficient brushless motor design. |
DESIGNED TO ENDUREThe sturdy composite shaft and all components are built to endure harsh marine environments and have advanced corrosion and saltwater protection. |
PERFECT FOR DEEP V HULLSGet easy installation where bow space is limited, thanks to the pivot-style mount. The 48-inch, 63-inch and 75-inch shaft lengths accommodate many different boat sizes and deck configurations. |
TOTAL CONTROL |
 |
 |
 |
|
STAY PUTThe anchor lock provides our most precise boat positioning technology to help keep the boat in one place. |
FLOATING REMOTEUse the included remote to help you navigate from anywhere in the boat with our simple point -and-go technology. |
SMARTWATCH INTEGRATIONConnect your compatible Garmin smartwatch to control steering, anchor lock and more from your wrist. |
WIRELESS INTEGRATIONConnect to your compatible chartplotter to create and follow routes for the trolling motor to follow while you fish. |
SONAR |
 |
 |
 |
INCLUDED SONARGet brilliant UHD sonar with the included GT56 transducer. |
ULTRA HIGH-DEFINITION SONAR PICTUREThe brushless motor allows for clear sonar returns with extremely low levels of unwanted noise. |
LIVESCOPE CABLE MANAGEMENTKeep your LiveScope sonar cable protected by running the transducer cable through the trolling motor shaft (accessory purchase required). |
 |
 |
Manage your marine experience Using the free ActiveCapain® App. |
Find the right setup with Garmin’s Online system builder. |
| Brands | Garmin |
|---|
Specifications
| General | |
| Colour | Black |
| For use in | Freshwater, brackish water and saltwater |
| Mount style | Pivot-style mount |
| Max thrust | 100 lbs per ISO 13342 using high efficiency propeller at 36 V 80 lbs per ISO 13342 using high efficiency propeller at 24 V |
| Voltage | 24 V or 36 V |
| Electric steering | Yes |
| Built-in heading sensor | Yes |
| Built-in GPS | Yes (dual frequency GPS) |
| Warranty | 3-year, limited lifetime on shaft |
| Water rating | IPX7 |
| Mounting location | Bow |
| Wireless remote | Yes (included) |
| Foot pedal compatible | Yes |
| Battery indicator | Yes |
| Variable speed control | Yes (20 steps) |
| Lighted direction indicator | Yes |
| quatix remote control supported | Yes |
| Manual reverse control | Yes |
| Sonar features & specifications | |
| Frequencies supported | CHIRP sonar: High-wide CHIRP (150-240 kHz) ClearVü: 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100) SideVü:455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100) |
| Transmit power | Traditional: 350 W ClearVü/SideVü 500 W |
| Maximum depth | CHIRP sonar: 800 ft freshwater ClearVü: 400 ft; SideVü: 500 ft |
| Depth/Speed/Temperature | Depth and temperature |
| Number of pins | 12-pin (orange connector) |
| LiveScope cable integration | Yes (LiveScope transducer and Kraken Mounting Bracket purchases required) |
| AutoPilot features | |
| Route following | Yes |
| Anchor lock | Yes |
| Smart anchor lock features | Yes |
| Anchor lock jog | Yes |
| Heading hold | Yes |
| Cruise control | Yes |
| Gesture features | Yes (manual+, heading hold+, jog+) |
| Remote features | |
| Display Size | 30.2 mm (1.2″) diameter |
| Display resolution | 240 x 240 pixels |
| Display type | Colour, sunlight-visible, transflective memory-in-pixel (MIP) |
| Chartplotter user-programmable keys | Yes |
| Autopilot feature control | Yes |
| Water rating | IPX7 |
| BATTERY LIFE | Typical use with backlight at low, 43.2 weeks |
| Floats | Yes |
In the box
- Force® Kraken Trolling motor
- GT56UHD-TR transducer
- Remote
- High efficiency propeller
- Assembly and mounting hardware
- Documentation
