Victron Energy Smartshunt 500A/50mV IP65
R1, 511,00

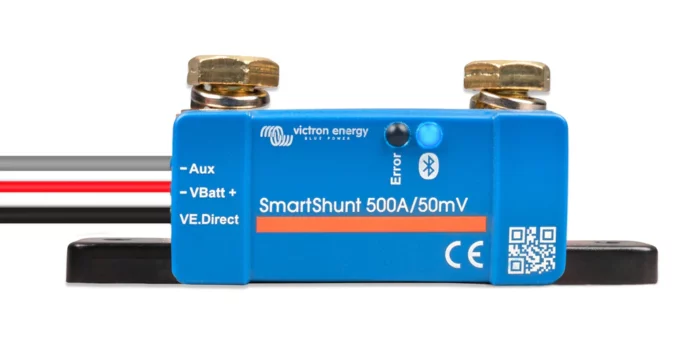

The SmartShunt IP65 is an all-in-one battery monitor, only without a display. Your phone acts as the display.
The SmartShunt IP65 is water resistant and is available in a 500 A version.
The SmartShunt IP65 connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.
Alternatively, the SmartShunt IP65 can be connected and be read by a GX device.
Connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.
The SmartShunt is equipped with Bluetooth, has a VE.Direct port and an auxiliary connection that can be used to monitor a second battery, for midpoint monitoring, or to connect a temperature sensor.
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
| Brands | Victron |
|---|
Specifications
Features
– Built-in Bluetooth
– Connects to mobile phone or tablet via VictronConnect App
– Easy Installation
– IP65
Specification:
– 500A
– Supply voltage range 6,5 – 70 VDC
– Current draw < 1mA
– Input voltage range, auxiliary battery 6,5 – 70 VDC
– Battery capacity (Ah) 1 – 9999 Ah
– Measures voltage of second battery, or temperature, or midpoint -Yes
– Temperature measurement range -20 +50 C
– VE.Direct communication port -Yes
In the box
What’s in the box
- 1 x Victron Energy Smartshunt 500A/50mV
- 2 x Two 1.5 m cables with 1 A fuse, for ‘+’ connection and starter battery or midpoint connection.
- 1 x 1.5 m cable with a VE.Direct socket. Note that a (not included) VE.Direct cable is needed to connect a GX device
