Fluid Level Sensor
Original price was: R2, 965,00.R2, 816,75Current price is: R2, 816,75.

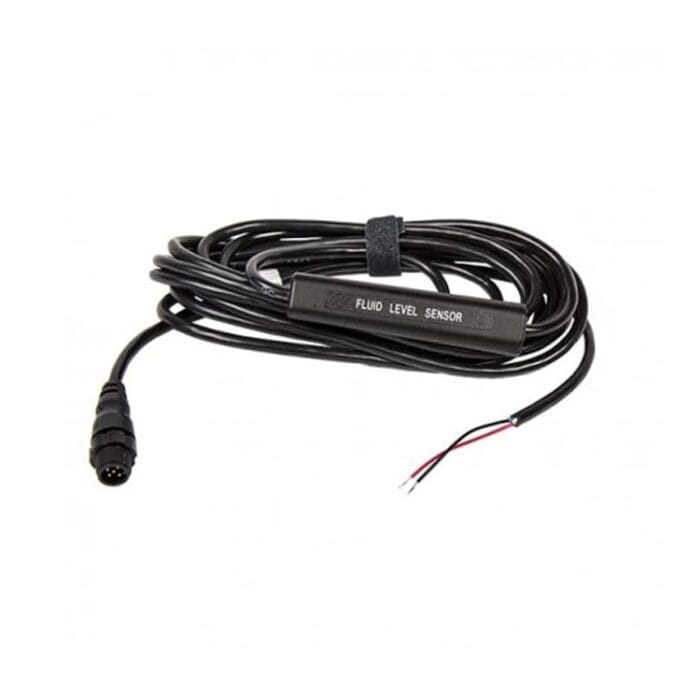

The Fluid Level Sensor helps maintain awareness of tank level by sharing fluid level data with any compatible display connected to the NMEA 2000® network. It can be configured for fuel, oil, live well, fresh water, gray water and black water tanks using compatible Lowrance displays.
Fluid Level sensor w/ 10′ cable and T-connector.
REPLACED THE EP-65R.
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
Description
Fuel Flow Sensor Gasoline only. One required per engine. Up to 3 engines supported. To get data on Fuel Remaining in the vessel tanks requires a 000-11522-001 Fuel Data Manager.
| Brands | Lowrance |
|---|
Output
|
Specifications
| Cable Length | 10 Ft |
| Fuel Line Diameter | 3/8″ (9.5 mm) Inside Diameter |
| Flow Rate Measured | Optimized for 0.6-45 Gal/hr but can measure outside these values |
| Added Back Pressure to the fuel system | 0.5 PSI at 20 Gal/hr; 1 PSI at 40 Gal/hr |
| Installation Location | Above the max level of the fuel tank, in-line after the fuel filter and any Y’s or T’s in the line |
| Package contents | Fuel Flow Sensor, N2K T and 2 (two) 1″ hose clamps |
| Fuel Type | Gasoline only. The Fuel Flow Sensor does not operate diesel engine fuel systems. |
| Hole required to route through a bulkhead | 22mm (7/8″) |
| Multiple Fuel Flow sensors possible | Yes |
Comes with
| 10-09-073
N2K-T-RD |

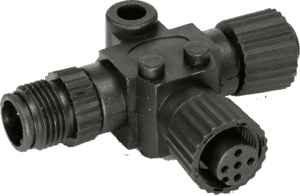

N2K T-Joiner
N2K-T-RD – Micro-C T-connector for connection of an additional network device |
