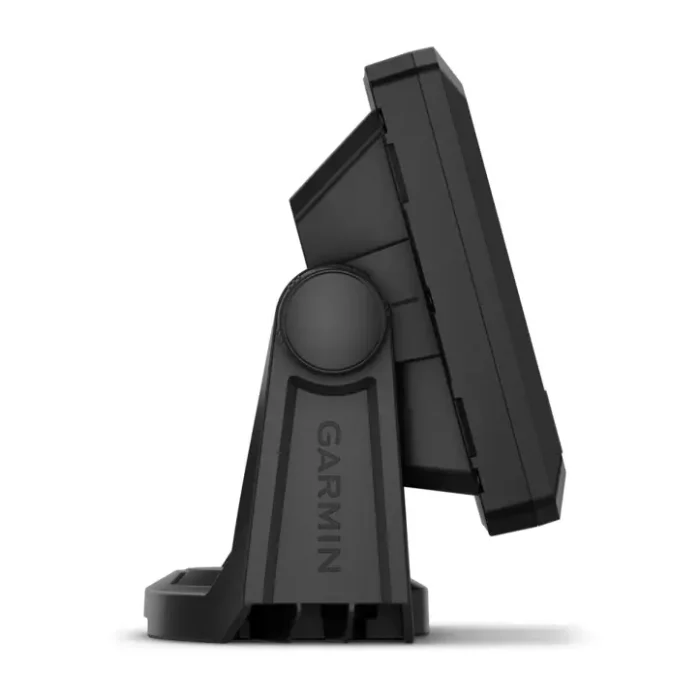

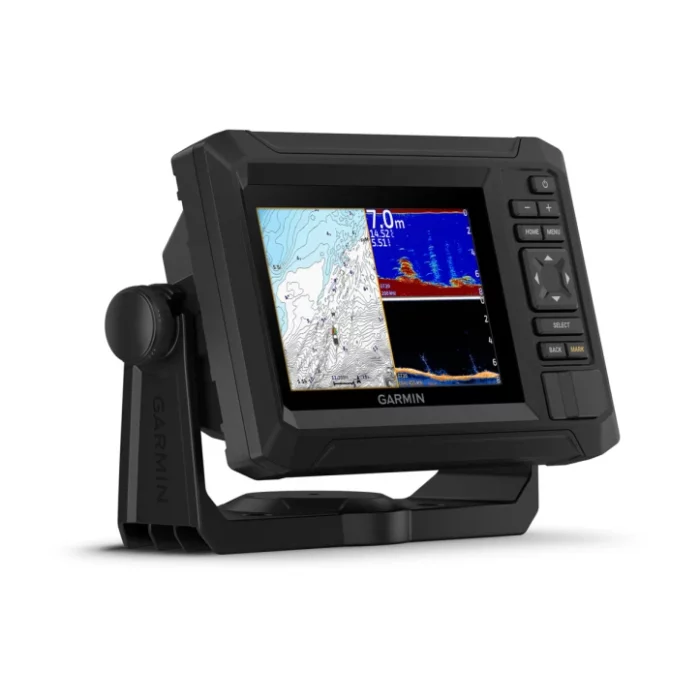

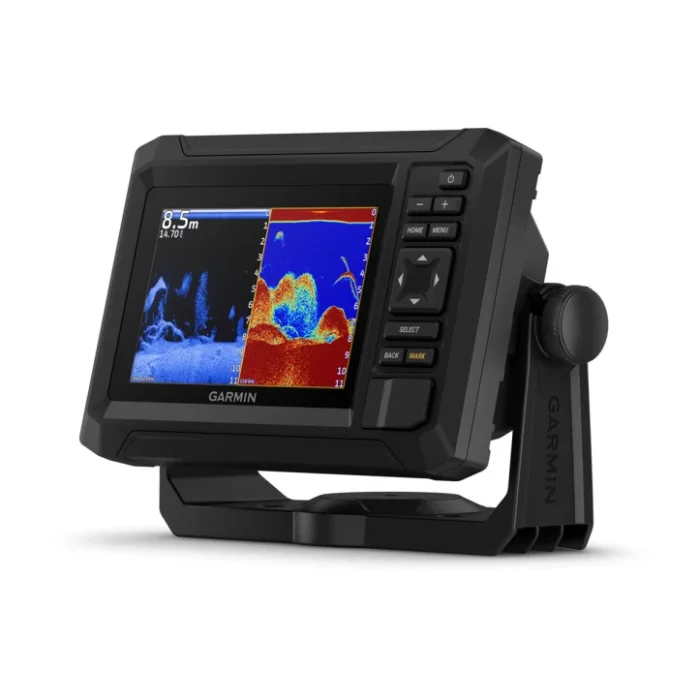

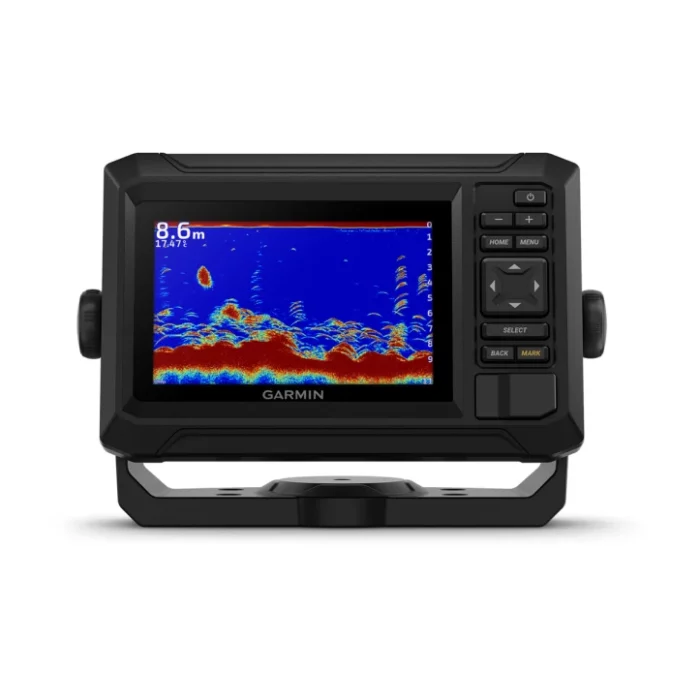

Garmin ECHOMAP™ UHD2 52cv (Keyed) Without Transducer
Original price was: R8, 999,00.R8, 000,00Current price is: R8, 000,00.
Discover the Garmin ECHOMAP™ UHD2 52cv, a compact 5″ chartplotter and fishfinder offering crystal-clear UHD ClearVü sonar, built-in GPS, and detailed mapping. Perfect for anglers who want powerful performance, easy operation, and precision navigation on the water.
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
WHY TALK TO A LOCAL WHEN YOU CAN FISH LIKE ONE?
They say locals know best. But anyone who says that hasn’t fished with the ECHOMAP UHD2 5″ and 7″ chartplotters with clear, crisp sonar and mapping.
- The bright 5″ or 7″ keyed display is made for convenience
- Get double the views1 with Garmin CHIRP traditional and ClearVü scanning sonars.
- What’s under the water looks even better with high-contrast vivid colour palettes.
- Wi-Fi® connectivity2 between compatible chartplotters makes it easy to share info.
- Enjoy No. 1 in mapping3 with our Garmin Navionics+ and Garmin Navionics Vision+.
SONAR SUPPORT
With crisp, clear traditional sonar and brilliant ClearVü sonar, the fish will have nowhere to hide.
VIVID COLOUR PALETTES
High-contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure.
BUNDLE YOUR TRANSDUCER
Your ECHOMAP UHD2 device supports a variety of Garmin transducers for two types of sonar: Garmin traditional and ClearVü scanning sonars.
ADD CHARTS
Know the waters you’re in as if you grew up fishing them by using optional Garmin Navionics+™ and Garmin Navionics Vision+™ marine cartography.
WIRELESS NETWORKING
If you have another compatible ECHOMAP UHD2 chartplotter on your boat, the 5″ and 7″ models can wirelessly share information — such as sonar, waypoints and routes — with them.
ACTIVECAPTAIN® APP
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw™ Community data and more2.
Specifications
General |
|
| Dimension | 7.4″ x 4.8 x 2.4″ (18.8 x 12.2 x 6.2 cm) |
| Weight | 1.1 lbs (0.5 kg) |
| Water rating | IPX7 |
| Display Type | WVGA, IPS |
| Display Size | 4.3″ x 2.6″ (10.9 x 6.6 cm) |
| Display Resolution | 800 x 480 pixels |
| Mounting Options | Bail or flush |
| Input | Yes |
Maps & memory |
|
| Accepts Data Cards | 1 microSD™ card; 32 GB maximum size |
| Waypoints | 5000 |
| Track points | 50000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Sensors |
|
| GPS | Yes |
| Galileo | Yes |
| Has built-in receiver | Yes |
| Receiver | 5 Hz |
| Supports WAAS | Yes |
Built-in maps |
|
| Built-in Auto Guidance+ | Yes (downloadable via ActiveCaptain app) |
| Garmin Navionics+ Inland & Coastal | Yes (see Additional) |
Optional map support |
|
| BlueChart g3 | Yes |
| BlueChart g3 Vision | Yes |
| Garmin Navionics+™ | Yes |
| Garmin Navionics Vision+™ | Yes |
| Garmin Quickdraw Contours | Yes |
Chartplotter features |
|
| ActiveCaptain Mobile Planning Compatible | yes |
Electrical features |
|
| POWER INPUT | 9 to 18 Vdc |
| Typical current draw at 12 Vdc | 1 A |
| Maximum current draw at 12 Vdc | 1.5 A |
| Maximum power usage at 10 Vdc | 18W |
Sonar features & specifications |
|
| Displays sonar | Yes |
| Power output | 500W |
| Traditional sonar (dual frequency/beam) | Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800 kHz |
Connections |
|
| 4-pin transducer ports | 1 |
| Garmin Wi-Fi network (local connection) | Yes |
Additional |
|
| Additional |
|
In the box
- ECHOMAP UHD2 (device will vary depending on selection)
- Power/data cable
- Tilt mount
- Flush mount
- Hardware
- Documentation
Power Cable
Garmin Power/Data Cable (4-pin) – 6″
Original price was: R599,00.R490,00Current price is: R490,00.Sun Cover & Clips
Garmin ECHOMAP™ UHD2 Trim Caps For UHD2 5cv
Original price was: R399,00.R330,00Current price is: R330,00.
Garmin Protective cover – Echomap UHD2 52cv
Original price was: R499,00.R410,00Current price is: R410,00.Mounts
Garmin Transducer Spray shield
Original price was: R599,00.R490,00Current price is: R490,00.
Garmin Tilt/Swivel Mount (Striker Plus 5cv,7cv/7sv)
Original price was: R599,00.R490,00Current price is: R490,00.Transducers
Garmin Stainless Steel Thru-hull Mount Transducer with Depth & Temperature (20° Tilt) – Airmar SS60
Original price was: R11, 699,00.R10, 190,00Current price is: R10, 190,00.
Garmin Bronze Thru-Hull Mount Transducer with Depth & Temperature (20° Tilt) – Airmar B619
Original price was: R5, 699,00.R5, 230,00Current price is: R5, 230,00.
Garmin GT24UHD-TM Ultra High-Definition Scanning Sonar All-in-one Transducer Ultra high-definition scanning sonar all-in-one transducer
Original price was: R5, 999,00.R5, 230,00Current price is: R5, 230,00.
Garmin GT20-TM All-in-one HD-ID and DownVü Transducer (4-pin)
Original price was: R2, 899,00.R2, 240,00Current price is: R2, 240,00.
Garmin Plastic Thru-Hull Mount Transducer with Depth & Temperature (12° Tilt) – Airmar P19
Original price was: R4, 899,00.R4, 270,00Current price is: R4, 270,00.
Garmin Transom Mount Transducer with Depth & Temperature (Dual Beam) 4-Pin
Original price was: R1, 699,00.R1, 310,00Current price is: R1, 310,00.
Garmin GT50M-TH Stainless Steel Thru-Hull ClearVü/SideVü 500W (CHIRP 455/800 kHz) Traditional 300W (Mid-band CHIRP 80-160 kHz) Transducer with Temp (12-pin)
Original price was: R16, 099,00.R14, 570,00Current price is: R14, 570,00.
Garmin GT8HW-TM Plastic, Transom or Trolling Motor Mount Transducer, High Wide CHIRP (150-240 kHz, 250W) (8-pin) (Copy)
Original price was: R8, 199,00.R6, 320,00Current price is: R6, 320,00.
Garmin GT12M-THF 350-watt Transducer
Original price was: R10, 999,00.R10, 500,00Current price is: R10, 500,00.

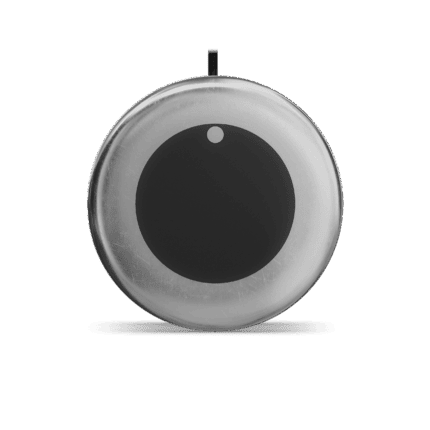

Garmin GT15M-THF 600-watt Transducer
