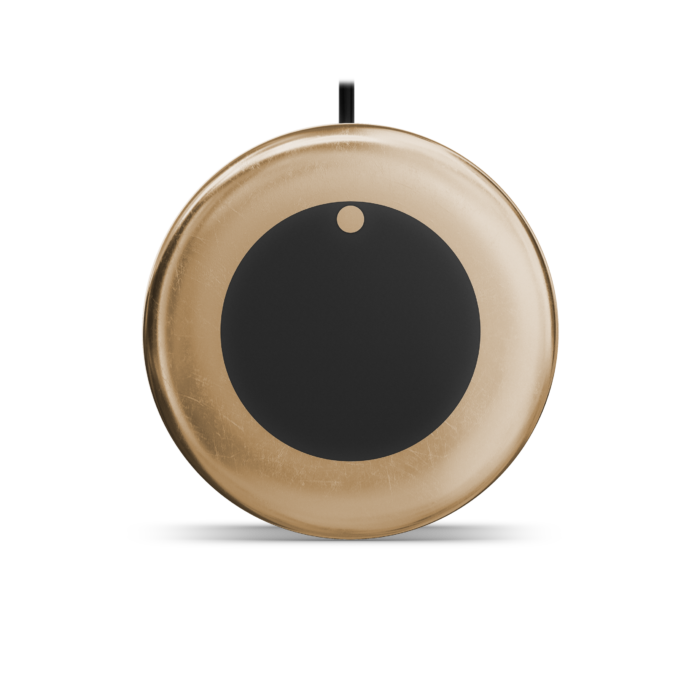

Garmin GT12M-THF 350-watt Transducer
Original price was: R10, 999,00.R10, 500,00Current price is: R10, 500,00.
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
Description
LESS TIME FINDING. MORE TIME FISHING.
Designed for reduced drag and optimum sonar performance on midsize fishing and cruising boats, this flush-mounted, 600-watt midband CHIRP transducer clearly defines fish arches, structure and bottom depth returns on your display.
 |
 |
 |
 |
 |
 |
| See maximum depth performance to 580m in freshwater. | Access CHIRP sonar frequency range from 85–165 kHz. | Search with beamwidths of 16–24 degrees. | Count on fast-response water temperature sensing. | Thru-hull design offers flush installation with 0-, 12- or 20-degree tilt. | Auto-ID enables simple plug-and-play operation. |
 |
 |
 |
MIDBAND CHIRP TRADITIONAL SONARThis 8-pin, 600-watt stainless steel thru-hull transducer features high-definition midband CHIRP sonar that clearly defines fish targets and structure down to 365m in saltwater and 580m in freshwater. |
BROAD FREQUENCY RANGEUse the perfect frequency for the waters you’re fishing. Covering the medium frequency range, this transducer pulses from 85–165 kHz, displaying a wide coverage area, crisp fish arches and accurate depth readings. |
OPTIMUM PING SENSITIVITYOffering excellent sonar sensitivity, low noise, high resolution and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on your compatible chartplotter display. |

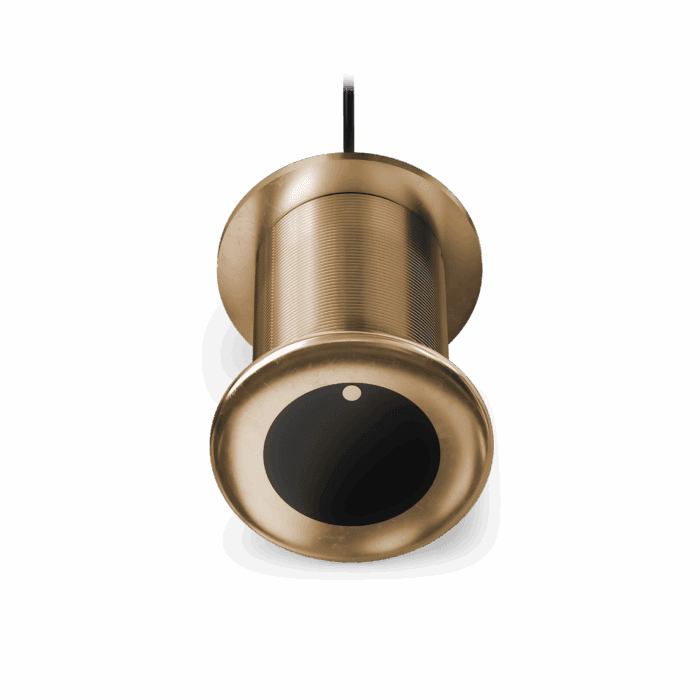

THRU-HULL INSTALLATIONA durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns. |
AUTO-ID TECHNOLOGYEnjoy simple plug-and-play operation with Garmin auto-identification technology — which enables the sonar to automatically configure itself to the transducer being used. |
FITS VARIOUS HULL TYPESConfigurable for a wide variety of boat hull materials, including fiberglass, composite, steel, aluminum and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–24 degrees without a fairing block. |
| Tilt | 0°, 12°, 20° |
|---|---|
| Brands | Garmin |
Specifications
General |
|
| Transducer frequency | Medium band CHIRP (85-165 kHz) |
| Transducer power | 350 W |
| Transducer beamwidth | 24°-16° |
| Transducer maximum depth | 240 metres saltwater; 365 metres freshwater |
| RapidReturn™ sonar compatible | Yes |
| Transducer cable length | 15 metres |
| Transducer depth/speed/temperature | Depth, temperature |
| Transducer number of pins | 8-pin |
| Transducer supported deadrise/transom angles | 0° supports hull deadrise angles from 0° to 7° 12° supports hull deadrise angles from 8° to 15° 20° supports hull deadrise angles from 16° to 24° |
| Housing material | Stainless steel |
In the box
- GT12M-THF transducer
- Jam nut
- Washer
- Documentation
