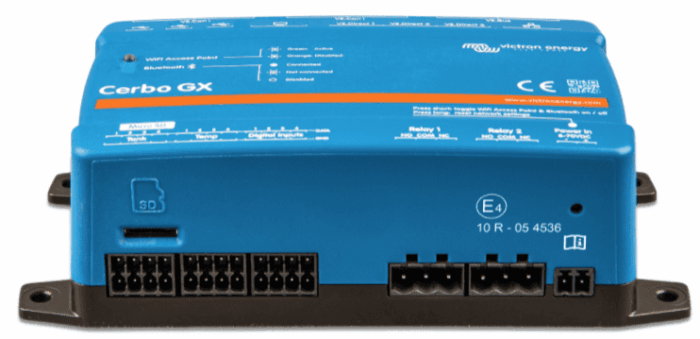

Victron Cerbo GX MK2
Original price was: R5, 599,35.R3, 689,00Current price is: R3, 689,00.
This all-new communication-centre allows you to always have perfect control over your system from wherever you are and maximises its performance. Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch, a MFD or our VictronConnect App thanks to its added Bluetooth capability. The RJ45 ports have been rotated for easier access to remove cables.
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
Panels and system monitoring
This all-new communication-centre allows you to always have perfect control over your system from wherever you are and maximises its performance. Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch, a MFD or our VictronConnect App thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.
Watch the new video that explains all there is to know about installing the new Cerbo GX & GX Touch 50.
Perfect monitoring & control
Instantly monitor the battery state of charge, power consumption, power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s) or change any setting to optimise the system. Follow up on alerts, perform diagnostic checks and resolve challenges remotely. The Cerbo GX turns any power challenge into an effortless experience.
Maximise your system performance
The Cerbo GX maximises the performance of your systems components in real-time and keeps them in perfect tune. With its Dual Core Processor and the addition of an extra CAN-bus port you can now support even bigger systems; closely follow managed (lithium) batteries while the second port can support up to 25 simultaneously connected VE.Can solar chargers. The new NMEA 2000-out support has the GX easily integrated into any boats network. Four tank- and four temperature ports as well as 3 VE.Direct ports, 3 USB ports, 4 digital inputs and 2 relays allow you to expand control to a new level. Maximising systems performance was never this easy.
Expand your view
The new (optional) GX Touch display allows you to have an instant overview of your system and adjust settings in the blink of an eye. Its super slim 5 or 7 inch waterproof design, top-mountable setup and its simple installation bring a lot of flexibility when creating a crisp and clean dashboard.
Simple mounting and configuration
The Cerbo GX is now optimised to more than meet the standards of installer professionals. The device is easily mountable on a DIN-Rail (with DIN35 adapter small, not included) and its separate touchscreen can now be bolted on top of a dashboard, eliminating the need to create perfect cut-outs (like with the Color Control GX) and is connected through just one cable, taking away the hassle of having to bring many wires to a dashboard. Its new Bluetooth feature enables a quick connection and configuration via our VictronConnect app.
Outsmart any power challenge
The Cerbo GX serves endless purposes, extending perfect control to the most diverse applications. For solutions including generators, such as Marine, or Off-grid & Backup, it will auto-start/stop your generator, or delays ignition until the end of ‘quiet’ periods. For Energy Storage Systems it keeps backup batteries at 100%, kicks-in during power-cuts and diverts excess (solar) power to self-consumption, saving you money. For RV and Emergency vehicles it keeps vital systems function flawlessly. But that’s just to name a few…
| Brands | Victron |
|---|
Specifications
Features
– Built-in Bluetooth
– Connects to mobile phone or tablet via VictronConnect App
– Easy Installation
– IP65
Specification:
– 500A
– Supply voltage range 6,5 – 70 VDC
– Current draw < 1mA
– Input voltage range, auxiliary battery 6,5 – 70 VDC
– Battery capacity (Ah) 1 – 9999 Ah
– Measures voltage of second battery, or temperature, or midpoint -Yes
– Temperature measurement range -20 +50 C
– VE.Direct communication port -Yes
In the box
What’s in the box
- 1 x Victron Energy Smartshunt 500A/50mV
- 2 x Two 1.5 m cables with 1 A fuse, for ‘+’ connection and starter battery or midpoint connection.
- 1 x 1.5 m cable with a VE.Direct socket. Note that a (not included) VE.Direct cable is needed to connect a GX device
