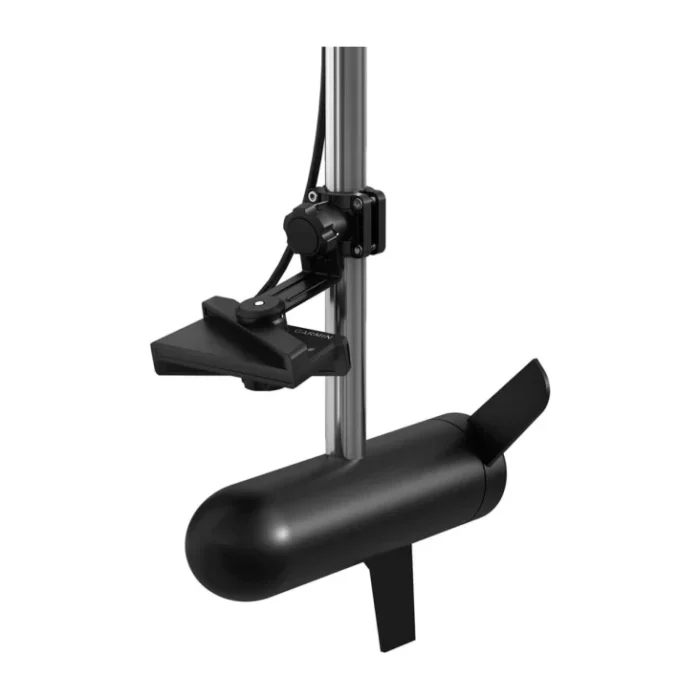

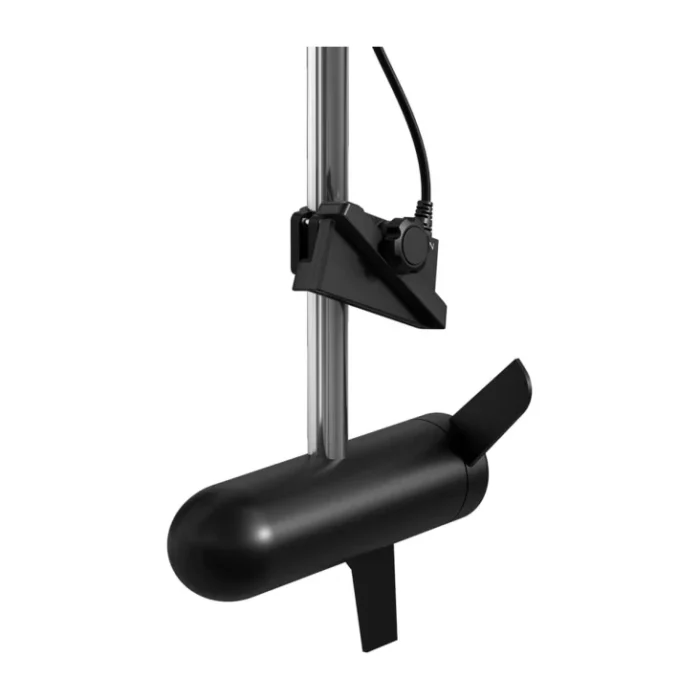

Garmin LiveScope™ Plus LVS34 Transducer Only
R31, 999,00
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
THE BEST OF THE BEST JUST GOT BETTER
The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.
- See images clearly with improved screen clarity, transducer sensitivity and target separation.
- Scan surroundings with sharper images, reduced noise and fewer sonar artifacts.
- Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.
- Get maximum contrast and clarity in your images with vivid colour palettes.
- Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount.
REAL-TIME IMAGES
Real-time sonar ensures that your live images are as accurate as possible.
CLEAR VISION
See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure.
IMAGE STABILISATION
A built-in stabilisation system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.
VIVID COLOUR PALETTES
Choose from seven vivid colour options — including Aqua, Caribbean, Lava and more — to see fish and structure in maximum contrast and clarity.
FORWARD MODE
Scout ahead of your boat to see what’s happening in real time.
DOWN MODE
Explore live views of the activity directly beneath your boat.
PERSPECTIVE MODE
See under the water with a view from your perspective above the water.
Powerful. Efficient. Quiet. Force® trolling motor.
Specifications
| General | |
| Transducer beamwidth | 20° x 135° |
| Transducer cable length | 20 ft |
| Transducer number of pins | 21 |
| Dimension | GLS 10 sonar black box: 24.5 x 14.9 x 6.5 cm; LVS32 transducer: 13.7 x 9.7 x 4.6 cm |
| Weight | GLS 10 sonar black box: 2.0 kg; LVS32 transducer: 0.9 kg |
| Water rating | IPX7 |
| Temperature range | GLS 10 Black Box: Operating: -15 C to 70 C Panoptix LiveScope LVS32 Transducer: Operating: 0 C to 40 C |
| Electrical features | |
| Power Input | 10-32 V |
| Power usage | 21 W typical, 58 W max |
| Fuse | 7.5 A |
| Compass safe distance | 4″ (0.1 m) |
| Sonar features & specifications | |
| Frequency | 530 – 1,100 kHz |
| Transmit power | 500 W |
| Maximum depth | Down and Forward: 61.0 m |
| Sonar Type | Live |
| Target Separation @100′ | 14″ |
| Perspective Mode Mount Included | Yes |
| Connections | |
| Garmin Marine Network Ports | 1 (small connector) |
In the box
- LiveScope GLS 10 sonar black box
- Panoptix LVS34 transducer
- Perspective mount
- Trolling motor barrel mount
- Shaft mount
- Power cable
- 2 metre Garmin Marine Network cable (small connector)
- Network adapter cable
- Documentation
